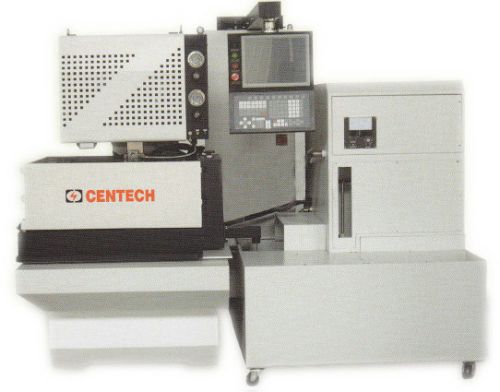

CNC Wire Cut EDM

Cnc Wire Cut Edm
features
1. rigid Stainless Steel Working Table is Heat Treated, Then Grind Accurately to Protect for High Accuracy and Durability from Being Deformed.
2. automatic Threading Wheel and Automatic Threading Wire, Easy to Use and Convenient for Maintenance.
3. with High Precision of Linear Way and Ball Screw, Enlarge the Loading Capacity of Working Table.
4. square Type Working Table to Hold the Work Piece in Any Place for Handy Operation.
5. providing Multiple Cutting Process with Super fine Finish Function.
6. with Accuracy Linear Scales On 5-axes.after Years of Operation, the Accuracy of Machine Won't Be Reduced By the Wear-out of Ball-bearing
specifications
model unit fw325/sw325 fw530/sw530 fw540/sw540 fw645 fw845
work Type fw Series Water-jet Processing Sw Series Soaking Processing B Threading
max. Work Piece mm 800*600*160/780*480*160 950*640*200/900*500*200 1100*800*320/1000*720*300 1200*930*322 1400*950*320
max. Work Piece Weight kg 350 600 600 800
table to Floor mm 900 1100 1100 1100
z—axis Device Automatic
x,Y Travel mm 350*250 500*300 500*400 600*450 800*450
z Travel mm 180/150 250/200 320/280 320 320
u,V Travel mm 50*50 80*80 100*100 100*100 100*100
positioning x,Y,U,V,Z Liner Scale
table Rapid Feed mm/min 1200
max. Type ±15/60mm(wide-angle Nozzle)
max.wire--feed m/min 15
wire Tension g 200~2500
max.thread Roll Weight kg 5
wire Diameter 0.15,0.20,0.25,0.30
perpendiculanrity Rectify mm Automatic
taper Rectify Automatic
