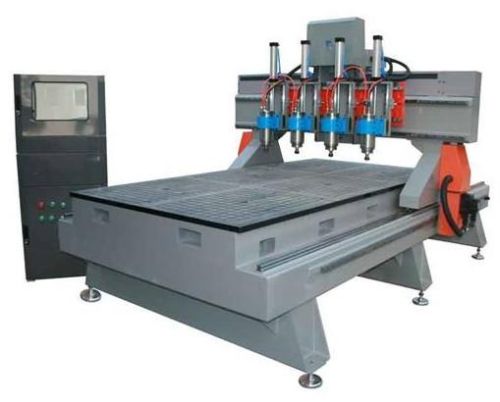

Four heads CNC woodworking engraving machine
The product has applied for patent
Feature:
Advantage 1, Compared with CNC router with ATC, this machine is cheaper but high speed for exchanging tools.
Advantage 2, Easy to operate it.
Advantage 3, Four cutters can be used freely, the efficiency can be increased up to four times if used at the same time.
Advantage 4, The distance of four heads can be adjusted freely, suitable for different sizes of material carving at the same time.
Function:
1, Four spindles can work same time or separately, the efficiency can be increased by max four times.
2, Four spindles with four different cutters start working one by one to realize max 4 station tool changing.
The two main function make the machine as market-oriented product in woodworking industry.
X, Y Working Area 1750*2500mm
Z Working Area 200mm
Travel Speed 15m/s
Table Structure by suction
Working voltage 380V
Drive System stepper
Machine Size 3.2*2.4*1.9m
Packing Size 3.5*2.6*2.1m
Weight 1.2t
