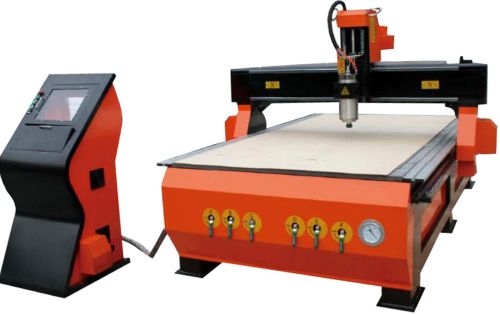

Cnc single head woodworking engraving machine (m25/cx1325 cnc router)
applicable industry:
stereo wave plate processing, cabinet door, artistic wooden door, paint-free door, folding screen, artistic windows, furniture carving
features:
1. whole steel structure, imported square orbit, ball screw for z axis, gear-wheel for x, y axis
2. wentai software and type3 software
3. 4.5 kw imported water cooling spindle
4. u disk dsp control system
5. vacuum table, no oil vacuum pump and dust collector system with 6 zones separately control, dust cover, 10 cutters
x working area 1300mm
y working area 2500mm
z working area 200mm
table size 1300*2500mm
processing precision +/-0.05mm
repositioning accuracy +/-0.05mm
table surface by suction
x. Y. Z structure x y gear wheel z ball screw
machine self-consumption power 1840w
max. Rapid travel speed 50000mm/min
max. Working speed 25000mm/min
spindle consumption power 4.5kw
spindle speed 0-24000 rpm
drive system stepper/servo
working voltage ac380v/50hz
command language g code
