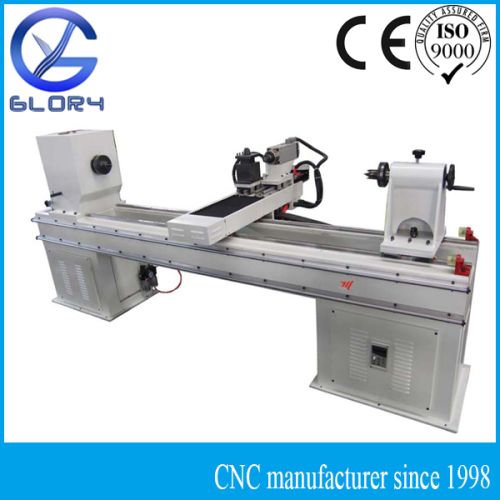

CNC Wood Engraving Turning Lathe Machine

We are offering cnc wood engraving turning lathe.
Key features:
1. Seamless steel lathe bed
2. Taiwan linear guide
3. Germany ball screw
4. Well compatibility: type 3, castmate, artcam, etc
5. Dsp handle controller with usd interface
6. Spindle speed data is shown on the cabinet panel
7. Only one time tool setting
ideal for:
staircase column, curved circular retire vases, tables, chairs, roman column continental furniture, wooden hangers and the complex shape of the washbasin, cylindrical, conical, curved, spherical rotary the body wood products or semi-finished products in wood.
Specification gy-mx1520
max working diameter φ300mm
max working length 1500mm
machine sizes 1000*1200*2610mm
spindle 3kw
rotating speed adjustable 0-1450 rpm
drive system
(x & y axes) helical rack & pinion
drive system
(z axis) germany ball screw
drive motors stepper motors
inverter fuling
driver yako
command g code
max travel speed 20mmin
max working speed 10mmin
controller dsp handle
power requirements 3-phase 380v50hz
optional parts:
1. More rotary axis
2. Different power requirement
3. Upgrade controller
4. Servo motor
5. Bigger working diameter and length, etc.
Note: all your requirements for the changes will be taken into consideration and we will try our best to make you satisfied.
Service & guarantee:
1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine
3. One year warranty, we will provide the consumable parts at cost price after the warranty period. (we suggest you order a few extra consumable parts together with the machine)
4. Our technician will come to your workshop if the problems can not be fixed through internet or phone communications.
5. 24-hour technical support by email or calling.
