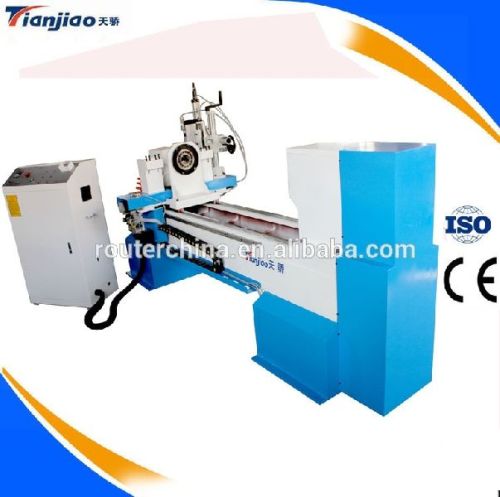

CNC Wood Lathe, Brand Name : Jinan Tianjiao

₹ 4.53 Lakh / Set

MOQ1 Set(s)
Brand NameJinan Tianjiao
Number Of FlowerTJ1530
After-Sales Service Provided1year
Country of OriginChina
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Number Of FlowerTJ1530
Brand NameJinan Tianjiao
After-Sales Service Provided1year
Country of OriginChina
MotorStepper Motor
DriverYako driver
Control systemDSP Control System
Max turning diameter300mm
GuiderTaiwan Hiwin orbit
InverterFuling inverter
Max processing length1500mm(can custom 2000/2500/3000mm)
Transimission typeballscrew for X Z axis,gear for Y axis
Max feed rate200cm/min
Main shaft rotating speed0-3000r/min

TJ-1530 CNC Wood Lathe working size:max 300mm diameter, max 1500mm length
Main Parts:
1.Adopts DSP control system;
2.Taiwan Hiwin 20mm Square Rail with X,Y,Z axis;
3.Y axis Rack&pinion transmission and X,Z axis with Taiwan TBI Ball screw;
4.Stepper motor and YAKO 2811 driver.
