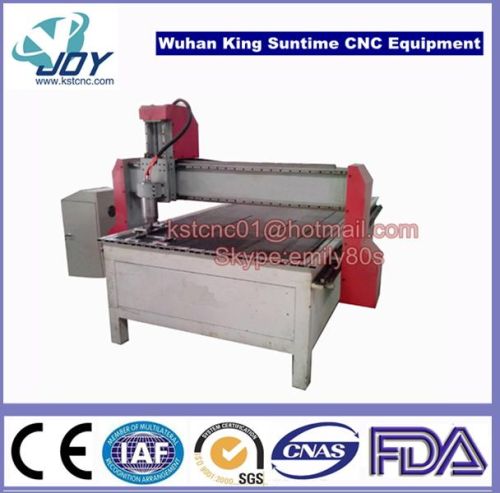

CNC Wood Router, Brand Name : JOY

We are offering joy 1325 cnc wood working engraving machine cnc wood router
any size can be chosen and customized
technical parameter:
model joy1224 joy1325 joy1530
x  y working area 1200x2400mm 1300*2500mm 1500x3000 mm
z working area 200mm
table size 1300*2600mm 1500*3000mm 1600*3200mm
max speed 0-50mmin
resolution 0.001mm
reposition accuracy 0.01mm
type of clamp vacuum table (6 section)
document transmission usb
command g  code*.u00*.mmg*.plt
software type3 software (original english version)
power(spindle power not included) 3000w
working voltage ac 380v220v
spindle power 3.0kw
spindle speed 0-24000rpmmin
operation way stepper
cnc wood router detailed description:
1. The lathe bed is wholly cast with iron, it can assure high stability and not easy to deformation, it can process the material on the table randomly.
2. Adopt the imported guide rail, ball bearing piece, can bear high weight, run stability, high precision, long life.
3. Intelligent protection for working table can avoid the damaging the table own to wrong operation or software fault. Its protection of step beyond the boundary avoids the crash while design area beyond processing area.
4. The compatibility of the software is good, it can compatible type3artcamcastmateartcut and cadcam design software.
cnc wood router applicable industry
widely used in acrylics, furniture processing, pvc, aluminum, woodworking decoration, wooden arts and crafts, stone carving processing etc.
