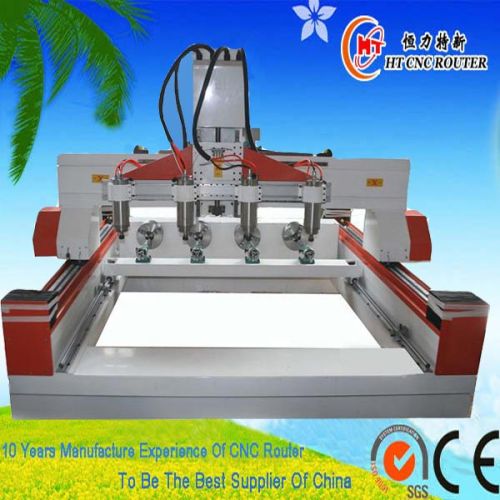

CNC Wood Router Machine

₹ 91,000 / 15000 15000 Set

MOQ1 Set(s)
Control cabinetIndependent cabinet
Repositioning Positioning Accuracy±0.05mm
Max. Rapid Travel Speed15000mm/min
SoftwareWentai
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 11 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Working Accuracy±0.05mm
Control cabinetIndependent cabinet
Spindle Power2.2KW*4
Repositioning Positioning Accuracy±0.05mm
StructureSteel structure
Drive MotorServo
Max. Working Speed12000mm/min
Spindle Speed0-24000r/min
SoftwareWentai
Control system4 axis Ncstudio control system
DescriptionJinan HT suppliy CE SGS good quality cnc wood router machine
X,Y,Z structureX,Y gear wheel, Z ball screw and square guide way
Max. Rapid Travel Speed15000mm/min
Working voltageAC380V/50Hz
Working size1800*2000*150mm
CommandG-code*.u00*.mmg*.plt

We are offering cnc wood router machine.
Application
3d column material engraving.
Feature
1.the machine can engrave four cylinder materials fixed on the rotary axis at one time, improving the processing efficiency.
2.the machine also can realize the flat engraving if added a platform over the rotary axis.
Specification
max diameter of cylinder 300mm
max length of cylinder 1500mm
working area 1800*2000*150mm
working accuracy ±0.05mm
repositioning positioning accuracy ±0.05mm
max. Rapid travel speed 15000mmmin
max. Working speed 12000mmmin
spindle power 2.2kw*4
spindle speed 0-24000rmin
drive motor servo
x,y,z structure x,y gear wheel, z ball screw and square guide way
structure steel structure
command g-code*.u00*.mmg*.plt
working voltage ac380v50hz
control system 4 axis ncstudio control system
software wentai
control cabinet independent cabinet
n.w. 1200kgs
packing size 2550*2260*1950mm
