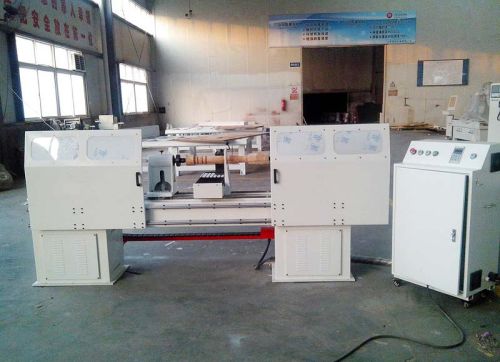

CNC Wood Turning Lathe Machine

We are offering Cnc Wood Turning Lathe Machine.
Key features:
1. Seamless steel lathe bed
2. Taiwan linear guide
3. Germany ball screw
4. Well compatibility: type 3, castmate, artcam, etc
5. Dsp handle controller with usd interface
6. Rotating speed data is shown on the cabinet panel
7. Only one time tool setting
ideal for:
staircase column, curved circular retire vases, tables, chairs, roman column continental furniture, wooden hangers and the complex shape of the washbasin, cylindrical, conical, curved, spherical rotary the body wood products or semi-finished products in wood.
Specification gy-mx1530
max working diameter φ300mm
max working length 1500mm
machine sizes 1000*1200*2610mm
rotating speed adjustable 0-1450 rpm
drive system
(x & y axes) helical rack & pinion
drive system
(z axis) germany ball screw
drive motors stepper motors
inverter fuling
driver yako
command g code
max travel speed 20mmin
max working speed 10mmin
controller dsp handle
power requirements 3-phase 380v50hz
optional parts:
1. More rotary axis
2. Spindle
3. Different power requirement
4. Upgrade controller
5. Servo motor
6. Bigger working diameter and length, etc.
