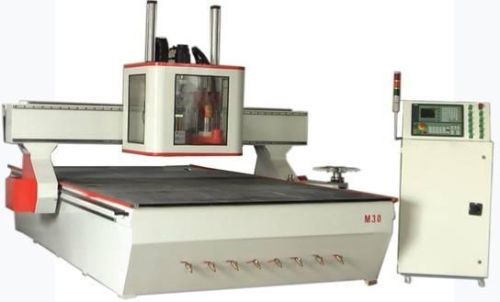

CNC Woodworking Machine(CNC Router)

Multi-Funcitional CNC Woodworking Center
Application:
Furniture industry, decorative materials, stereos, and other fields. Also applies to other non-metallic processing, automotive mold processing.
Feature:
1. All the electrical and mechanical components of his model are chosen from top international brands. Servo drive system made in Japan and original Italian spindle.
2. Round type ATC system, tool storage capacity of 8, tool exchanging time of 8 seconds., Processing speeds up to 25 m / min.
3. Imported square orbits, double-side four ball slider, smooth operation, accurate engraving.
4. New bed structure, control systems from Taiwan, tool storage is installed next to the Z axis or to the beam (optional).
5. Shooting drill: 7 sets of L-shaped 2x5 vertical drills, drill center distance of 32mm. A set of level drills on both X and Y axis. Saws with 90 degree turning.
6. Any size is available according to customers order.
7.
Technical Parameter:
X working area 1300mm
Y working area 2500mm
Z working area Max 300mm
Table size 1300*2500mm
Traveling positioning accuracy Min 0.05mm
Repositioning positioning accuracy Min 0.05mm
Table surface By suction
XYZ structure X Y gear wheel Z ball screw
Max. rapid travel rate 60000mm/min
Max. working speed 25000mm/min
Spindle power motor 9.0kw
Spindle speed 0-24000r/min
Drive system Servo
Working voltage AC380V/50HZ
Command language G-code
Operating system Baoyuan system
