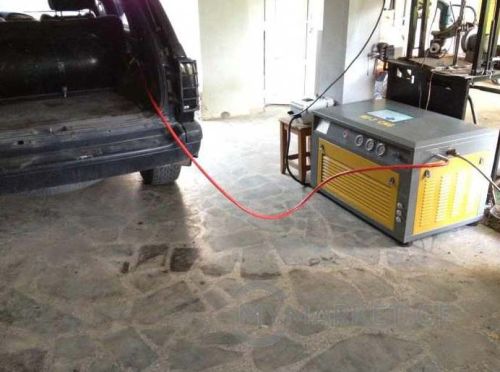

Auto car CNG filling compressor (TP5) is exported and supplied by us from the city of Wenling, Zhejiang. The model of the instrument we supply is TP5.It has a flow rate of about 5.5Nm3/h 3.5cfm.The time required for filling is 2.2 hour/60l tank with a working pressure of 200 bar and 2.7 hour for 60ltank with 250 bar working pressure. The inlet pressure it requires is less than 0.3 bar. The motor power it consumes is 50/60 HZ in a three phase. It has an auto stop timer. The weight of the whole instrument is about 170 KG with a dimension of 600mm (H) X900mm (W) X650mm (D).
| Model | TP5 |
|---|---|
| Flow rate | 5.5 Nm3/h 3.5 cfm |
| Filling time | 2.2 hour for 60L tank(200bar 3000psi) 2.7 hour for 60L tank(250bar 3600psi) |
| Working pressure | 200bar /3000psi or 250bar /3600psi |
| Inlet pressure | Less than 0.3bar 4.5psi |
| Motor power | EX 3.0kw/4.0hp 50/60hz, three phase |
| Oil separator / oil filter | 42005 |
| Safety valve/ Alarm sensor | 1 in final/ option |
| Time meter | 1 |
| Switch | auto stop |
| Filling hose connect | 1 |
| Dimensions (H-W-D) | 600-900-650 mm |
| Weight( Net) | 170kg |
| Weight( Gross) | 190kg |
| Noise level | 50 db(A) |
