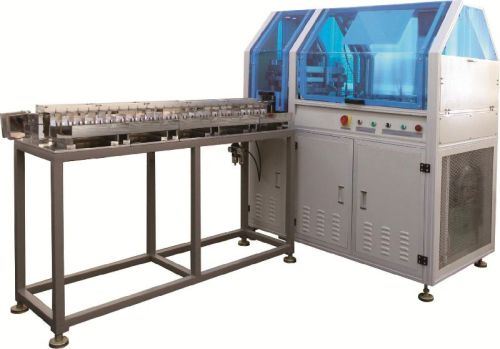

CNJ-5A 25PLC Punching Machine, Brand Name : sinocard

Function and application introduction
can help you to save about 12 workers and increase 50% your production capacity. This machine is the specialized equipment for handling a complex printed sheet that printed several different designs or combinations of card. This machine provides cutting, collating and separating the different design cards automatically. Such as a sheet printed 5x5 up (also 3x8, 6x8.etc) ups format card sheet 25 (24, 48 pcs) different card designs will be cut and separated to a 5 or 25 groups by the 25 (24, 48) chambers card collating system automatically, operator doesn�t need to separate or group card again, in order to increase the production rate, save labor cost, reduce scrape and scrap.
Of course we can tailor-make and design the automatic collecting system according your special request, such as 3x8 ups, 6x8 ups format of card sheet, etc.
Technical parameter:
model cnj-5a -25plc punching machine
power ac 380v 5060 hz 5.5kw
air pressure 6kg cm square
layout 5x5
applicable materials pvc�abs�pet�mixed material of pvc and abs paper cards
production capacity 18000 cardshour
card separation 5,25
control method plc program + servo system
operator 1 person
weight 1200kg approx
overall dimension l3000 x w1240 x h 1750mm
