Contact SupplierProduct introduction:

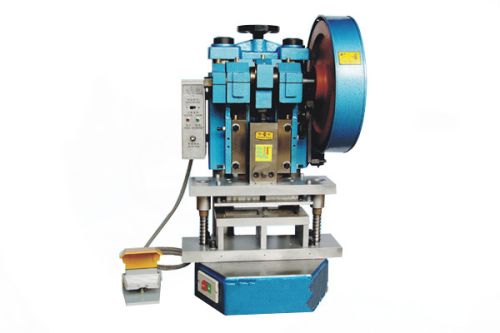

cnj-d5-2 two dies punching machine, which is a punched equipment for punching pvc cards, during the card making procedure, it can punch the laminated material into a card figure. The driving manner is that the electromotor drives the fly wheel ,through the function of clutch to punch the cards. Because the punching speed is very fast and the power is strongly, the edge of the cards is cut smoothly. The machine operates easily, high efficiency, which is designed for the pre-special consumer.
Technical specification
type cnj-d5-2 punching machine
punching size 85.7ã�54mm
inlet dimension 210ã�297mm
punching thickness 0.1-1.5mm
cutter mold 2pcs
efficiency 2400sheetsh
power ac 220110v 5060hz
machine size 530ã�420ã�620mm
net weight 180kg
packing meas 580ã�460ã�720mm (wooden box)
gross weight 197kg
