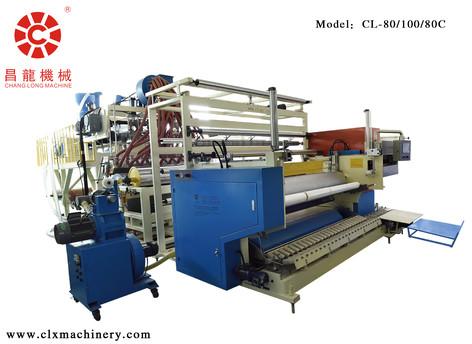

Co-Extrusion Stretch Film Making Machine

2000mm threefive layersfully automatic co-extrusion stretch film unit Designed for producingsingledouble-side self-adhesive three- layer five-layer stretch film, caststretch film, cling film, embossing film, protective film etc.,this machine combines with advanced technology in Europe and Ameria,which adopt Germany Siemens PLC system control,frictionless cylinder winding with tension adjustment settings,which is the tension closed-loop control system to achieve constant tension, is suitable for LLDPE, CPE, PP, PE material and so on. MainTechnical Parameter: Model: CL-8010080C Width of Die Head: 2350mm Width of Film: 2050mm Thickness of Film: 0.01-0.05mm Structure of Film Layers: ABC or ACBCA Liner Speed of Machinery: 200mmin Max Extrusion Capacity: 420kgh Max Rewind Diameter: 400mm Screw Diameter: 8010080mm LD Ratio of Screw: 30:1 Motor Power of Main Machine: 459045kw Total Power: 100-250kw Overall Dimensions(L*W*H): 12*5.6*4.5m Total Weight: 17T Features: 1.The whole line adopt melt metering pump with precision sensor pressure system. Strictly control plastic extruder output, ensuring finish stable and maintain a uniformity. 2. Cooling roller adopt bigdiameter design and special double deck runner, greatly improving the coolingeffect in high speed producing process and ensure the same temperature ofcooling roll surface. 3. The whole line comes true fullyautomatic production, based on traditional automatic cut film, increase highoutput, high li
