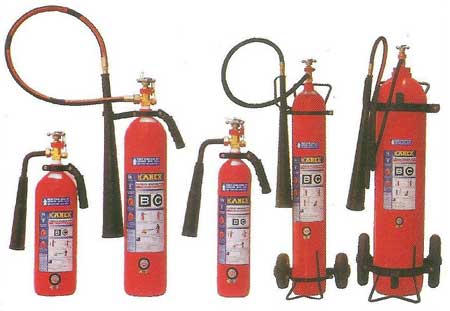

Co2 fire extinguisher

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are the prominent Manufacturer and Supplier of high quality of Co2 Fire Extinguisher that is supplied to different parts of the country. Our Co2 Fire Extinguisher is manufactured from burning liquid such as oil, petrol kerosene and burning gases such as butane, chloride and natural propane, vinyl chloride and natural gases and live electrical equipment.

View More Details

Send Enquiry

Detail

Ready With : (component)	Burning liquid such as oil petrol kerosene burning gases such as butane, chloride and natural propane vinyl chloride and natural gases live electrical equipment
Features	For quick and efficient service Ideal for tackling fires involving inflammables liquids like petrol, oil, paints, solvents and industrial gases Suitable for sophisticated machineries Extinguishes the fire within seconds by dilution of oxygen and chilling effect

Know Your Fire Extinguishers

Download Detail File : Click Here

Technical Specifications

IS Specifications	IS : 2878 lastest revision & capacity 2, 3, 4.5,6.5, 9 & 22.5 kgs.
Construction	cylinders bearing IS :7285 & brass forge valve IS : 3224
Charge	Co 2 confirming IS : 307 & filled with liquified Co 2 gas filling ratio <= 0.667
Finish	Painted in synthetic enamel red / fire red epoy polyster coating.
Accessories	Wall mounting brackets & trolley for 6.5, 9 & 22.5 kgs
Operation	Keep KANEX extinguisher upright and hold in hand firmly. Remove safety pin and turn the wheel anti - clockwise. Direct discharge at the base of the base of the flames.
Maintenance	Strictly as per IS : 2190 for satisfactioy performance
Approval	Approved and certified by BIS

Special Features

Capacity	2 kgs.	3kgs.	4.5kgs	6.5kgs	9kgs	22.5kgs
I S S No.	2878
Jet ragge (in mtrs.)	2	2	2-5	2.5-3	2.5-3	2.5-3
Discharge time (in sec)	14 -16	16 - 18	20 - 24	25- -30	25 - 35	50 - 60
Working pressure (in kg. / Cm₂)	58 - 60	58 - 60	58 - 60	58 - 60	58 - 60	58 - 60
Weight of charged exting. (App. in kg.)	8.20	12.90	18.40	25.30	29. 00	69. 00
Operation	Vertical	Vertical	Vertical	Vertical	Vertical	Vertical
