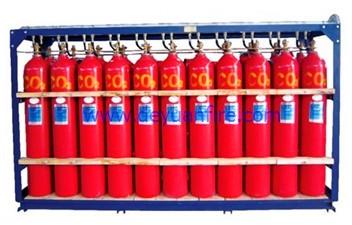

Co2 Fire Extinguishing System

We offer co2 fire extinguishing system.
china deyuan marine fitting co.,ltd are leading supplier of carbon dioxide fire extinguishing system,local water-based fire fighting system,fixed foam fire fighting plant,water spray fire extinguishing system.pls contact us for more details.
type fixed
nominal pressure 14.7mpa
cylinder volume co2 cylinder 40l,68l
n2 cylinder 4l
co2 filling rate ≤0.67kgl
environment condition temperature -10℃+50℃
humidity 93±3%
electricity supply main supply ac220v,50hz440v,60hz
auxiliary supply dc24v,3a
power standby ≤30w
working 200w
operation method manual
pneumatic remote control
mechanically local operation
release delay mechanical delay 20-40s
star up air source gas type n2
filling pressure 5.9mpa



external dimension
assembly
type cylinder
unit length breadth height(h)
40l 68l 40l 68l
single
row 2 605 680 310 350 2000
3 855 970
4 1105 1260
5 1355 1550
6 1605 1840
7 1855 2130
8 2105 2420
9 2355 2710
10 2605 3000
11 2855 3290
12 3105 3580
double
row with
single
assembly 4 605 680 500 600 2000
6 855 970
9 1105 1260
10 1355 1550
12 1605 1840
14 1855 2130
16 2105 2420
18 2355 2710
20 2605 3000
22 2855 3290
24 3105 3580
double
row with
sides assembly 4 605 680 580 680 2000
6 855 970
9 1105 1260
10 1355 1550
12 1605 1840
14 1855 2130
16 2105 2420
18 2355 2710
20 2605 3000
22 2855 3290
24 3105 3580

&&&&&&:
