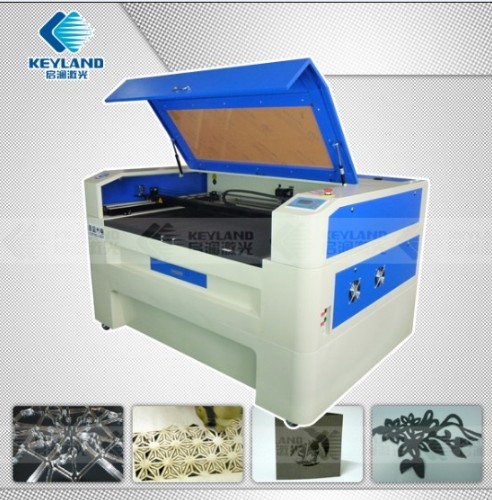

Co2 laser cutting machine, Brand Name : Keyland

We are offering Co2 Laser Cutting Machine use to fine cut /engrave/hollow out on many different type of nonmetallic materials with intricate shapes,graphics,text and logos
CO2 laser cutting engraving machine can work in follow materials
Acrylic | Plexiglass | Pmma| Perspex
Organic board | Double color plate
Wood | Bamboo | Veneer | MDF
Leather |Pig leather | |sheep leather
Fabric |Cloth | Textile
Wool Felt
Paper | Cardboard | Chipboard|Press Board
Ceramic | Tile| Marble
Plastic
Fiber glass
If your material is not on the above list, please kindly contact us to confirm. Margret is always to be at your Service.
CO2 Laser cutting machine Price good and widely applied in many industry
Apparel,leather,Advertising,decoration,furniture,model,craft industry
Technical Parameter
Model:
KQG-1060C
KQG-7050C
KQG-1290C
KQG-1390C
Laser
CO2 glass sealed laser tube or RF metal sealed laser tube optional
Laser power
40W/60W/80W
60W/80W/100W/120W/150W
Work platform size
1000×600mm | 700×500mm| 1200×900mm | 1300*900mm
Engraving speed
≤1000mm/s
Cutting speed
≤500mm/s
Worktable
honey-comb or Alumnium Knife Slatted platform optional
Precision of positioning
≤±0.025mm
Graphic format:
PLT,BMP,DXF,DST,TIF
Working temperature:
0-45 degree C
Motor type:
Stepper Motor
Water Cooling:
Water chiller
The Whole Set
1PCS CO2 laser cutting machine
1PCS Water chiller
1PCS Air pump
1PCS Fan blower
Recommended spare parts
Laser tube, Focal lens, Reflector lens(3PCS)
Electricity:
220V/50hz/1kva 110V60HZ 220V60HZ
G.W
275KG
260KG
432KG
470KG
CO2 Laser Cutting Machine Features
1. CO2 Glass sealed laser tube
(Chinafamous brand,Good beam mode stability,service time over 6000~10000 hours
(150W laser power) )
2. Imported II-VI ZnSe focus lens( High transmittance,good focusing effect and stability 3.DSP control system
USB interface,support online/offline work,English language system,Adjustable cutting speed and power
4.Japan Stepper motor drive and belt transmission
5.Linear guide rails:Taiwanese made famous
6.Industrial Cooling System
the constant water temperature,ensure laser tube a longer service time and high stability
7.The alarm device
8.Hydraulic protection,exhaust dust and smoke device,the huff protection
9. Honeycomb or Slatted worktable optional
Honeycomb worktable for cutting fabric leather etc soft material
Aluminum knife worktable for cutting acrylic etc hard material
10. Routeway feeding:allow users of roll material with unlimited length
11.Optional up & down adjustable worktable:Can engrave & cut different height materials
12.Portable laser cutting machine: with wheels , easy to move and fixed
