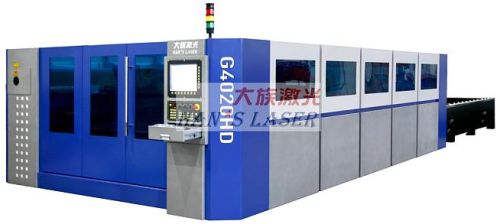

Co2 Laser Machine - Gantry Structure

We are offering co2 laser machine - gantry structure.
brief introduction
cst series co2 laser machine-developed by han’ laser exclusively – is the only one which adopts the incentive technology of independent voltage switch power supply and the axial rapid flow technology in china. Cst series laser machine is in the lead of photoelectric conversion rate, gas consumption, and quality of light beam and processing ability in china.
full description
cutting speed could reach as rapid as 9 m/min (for our own brand laser generator) and 18m/min (for rofin dc laser generator)
the largest manufacturer in asian area.
maximum cutting thickness
carbon steel: 22mm (our own brand 4200w series) 25mm (rofin dc050)
stainless steel: 10mm (our own brand 4200w series) 16mm (rofin dc050)
aluminum : 6mm (our own brand 4200w series) 12mm (rofin dc050)
type key specification
(for 4020 size, pls visit www.hanslaser.com for other types )
processing area（l×w） 3000mm×1500mm
x axis stroke 4050mm
y axis stroke 2020mm
z axis stroke 120mm
x/y axis location accuracy ±0.03mm/m
x/y axis repeated location accuracy ±0.02mm
x/y single max. Location speed 140m/min
cnc system pa8000
x/y axis max. Acceleration 1.2g
worktable max. Load 1300kg
machine tool weigh 10000kg
dimension （l×w×h） 11400mm×3400mm×2000mm
why we are your best choice?
1 we provide more than product!
our technical offices scatter around the world, and always at your thoughtful service before sales, in sales as well as after sales.
2 we are more than the integrator of world branded components
we optimize every component in our machines to perfectly customize them to your exact demand.
3 our product enjoys unique prestigious reputation home and abroad for the superior quality, high cost performance as well as complete after sales service.
