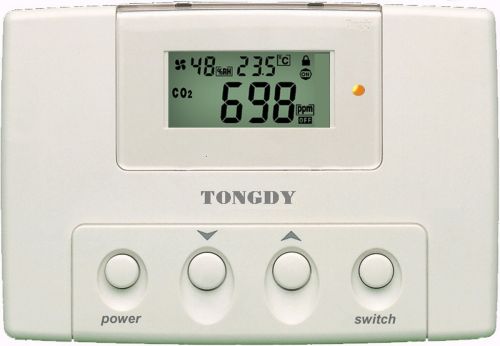

Co2, Temperature, Humidity Controller

We are offering co2, temperature, humidity controller. • features
 especially designed for agriculture equipments such as greenhouses, food and vegetable storages. Real-time detecting co2 level, temperature and humidity with the local programmable control.
 wall mounting, lcd display
 carbon dioxide sensor, temperature sensor and humidity sensor are internal. The three values can be apart set.
 non-dispersive infrared detector (ndir) co2 sensor, 15 years lifetime, co2 setting range is selectable: 0~2000ppm / 0~20000ppm / 0~50000ppm
 special abc logic with patented self calibration algorithm makes the co2 sensor used up to 15 years
 temperature setting range: 5~45℃
humidity setting range: 5～95%rh
 provide three relays outputs to control a co2 generator, a temperature device and a humidity devise or a ventilator.
 special photosensitive sensor detection can make the working mode of the co2 generator changeover automatically in day and night.
 provide brightness adjustment range to make day/night limit setting by end users.
 rs-485 communication interface with 15kv antistatic protection makes the controller being connected with pc (option)
 multiple functions, high performance, low price, make it praiseworthily.
• application
f2000iaq-co2 -3003d multiple controller is used to control co2 level, temperature and humidity in order to offer right environment for plants growth or for foods storage.
it provides three dry contact outputs to control a carbon dioxide generator and a ventilator or other temperature/humidity equipments. It can provide rs485 communication with independent address to pc or other control systems.
it will be used below application:
1. greenhouses, which include vegetable planting houses and flowers planting houses.
2. modern hydroponics gardens
3. other relevant field of agriculture
4. keep food and vegetable on fresh
• buttons and lcd
• specifications
gas detected carbon dioxide (co2)
sensing element non-dispersive infrared detector (ndir)
temperature sensor ntc
humidity sensor hs series capacitive sensor
temperature dependence 0.2% fs/℃
temperature correction self compensation
power supply 220vac or 110vac or 24vac, 50/60hz±10%, selectable in order
consumption 3.5 w max. ; 2.5 w avg.
accuracy@25℃(77℉) ±40ppm + 3% of reading
stability.
