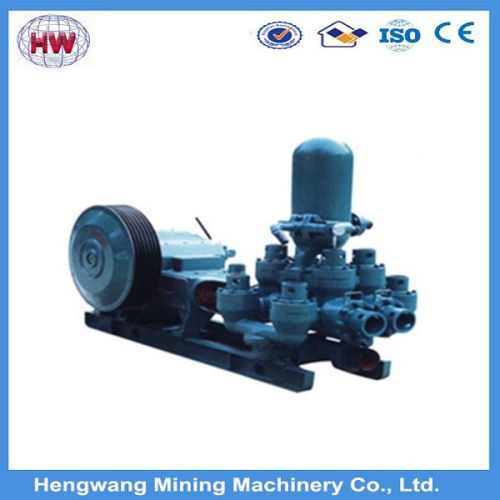

Coal Mining Piston Diesel Engine Mud Pump

We offer coal mining piston diesel engine mud pump.
The pump is horizontal two-cylinder double-acting piston pump. Mainly used in geological, water, shallow oil and freeze construction supply flushing fluid in drilling.medium can be mud, clear water, also can be as above’s infusion pump.
the pump by changing the different diameter of cylinder liner, piston and piston, different flow rate and pressure can be obtained.
technical parameters:
model tbw-8505a tbw-6006a tbw-3508a
nominal flow-rate (lmin) 850 600 350
nominal pressure(mpa) 5 6 8
slurry pipe inner absorption φ152 φ152 φ152
slurry pipe bore φ64 φ64 φ64
piston stroke(mm) 260 260 260
piston diameter(mm) φ140 φ130 φ95
matching power y280m- type 90kwmotor
or 6135an-3-sm·a type110kw diesel engine
triangle specifications c type 6300-7 piece.
Boundary dimension(l*w*h) 3018*1120*2050(mm)do not contain power
weight 3100kg do not contain power.
