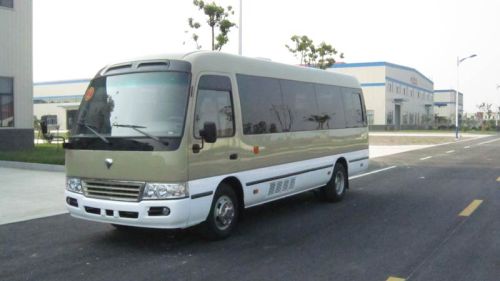

Coaster Bus

We are offering coaster bus.
Sgk6700k04
seat:10-23
l*w*h:7005*2050*2650
g.v.w(kg):4550
coaster mini bus,mini bus,passenger van,hyundai country bus
model sgk6700k04
dimension
overall length (mm)
7005
overall width (mm)
2050
overall height (mm)
2650
wheel base(mm)
3935
wheel track frontrear(mm)
16651525
frontrear overhang (mm)
11801890
performance
grade ability (%)
≥20
min. Turning diameter (m)
18
max. Speed (kmh)
100
fuel consumption (l100km)
17
max. Braking distance (m)
≤8
approach angle departure angle (°)
1513
specification
g.v.w. (kg)
4550
rated max. Mass (kg)
6500
passenger capacity
10-23
exhaust standard
euro1, 2, 3, 4
engine
model
yc4fa130-40
type
inline four cylinders,4 stroke,forced water cooling,liquid cooling,in-line pump
power (kwps)
95
max.torque(n.mrpm)
360
displacement (ml)
2982
chassis
model
hfc6685ky2f
type
front mounted
redirector
booster brake
clutch
single disc ,dry
transmission
5-gear
suspension
plate spring
brake system
dual -circuit pneumatic brake
tyre
7.00r16
