Salient Features: Coating Pan is engineered to the perfection from SS 304 (SS 316 optional). Totally enclosed machine drive and hot air blowing system. 30”, 36”, 42” or 48” Coating Machine has variable speed drive. Hot air blowing system is separate. 60” or 72” Coating Machine has two speeds with step pulley without hota i r b lowing system. Hot air blowing system is with temperature control probe.

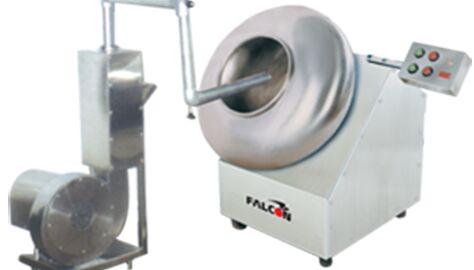

Salient Features:- Coating Pan - Tablet Coating Machine with Hot Air Blowing System
| MODEL | 12" | 18" | 24" | 30" | 36" | 42" | 48" | 60" | 72" |
|---|---|---|---|---|---|---|---|---|---|
| Loading | 05 | 7 | 20 | 40 | 60 | 90 | 110 | 150 | 200 |
| Capacity in Kg. | to 8 | to 25 | to 45 | to 80 | to 100 | to 120 | to 210 | to 250 | |
| Motor HP | 0.5 | 0.5 | 1.0 | 1.5 | 1.5 | 2.0 | 2.0 | 5.0 | 7.5 |
| Blower HP | 0.25 | 0.25 | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 | 2.0 | 2.0 |
| Blower fan Volume CFM | 90 | 90 | 150 | 150 | 150 | 150 | 150 | 300 | 300 |
| Heater Capacity in KW | 1.0 | 1.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 5.0 | 5.0 |
