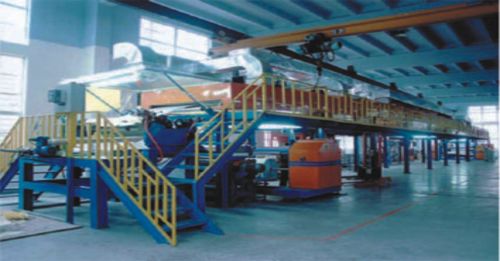

We are offering BYJX-TB1300 coating machine
Application fields:
Applied in coating raw materials of exquisite electronic adhesive tape such as PET, cotton paper, Kapton, OPP etc.
Characteristics:
Air pressure lift for single oven , with heating method of burning machine，thermal oil, steam and infrared ray etc. Coating method can be Comma, bar, mesh or other. PLC programmable control with touch screen .User-friendly design.
Â
Main components
1.Unwinding machine with two changeable axises:2 set 2.Gluing machine: 1 pcs
3. The main frame: 1 set 4. Oven: 1 set
5. Rewinding machine two changeable axises: 1 set 6. Cooling wheel: 1pcs
7. Printing and coating group: 1 set 8. Stripping rewinding: 1 set
9. Preheating system: 1 set 10. Pipeline engineering (host) : 1 set
Technical parameters:
1.Glum type: solvent water based glue 2.Mechanical speed: 150 mmin
3.The glue coating speed: 20-120 - mmin 4.Maximum width: 100013001600 mm
5.The Max. unwinding diameter: ɸ1000mm 6.The Max. rewinding diameter: ɸ 800 mm
7.Oven length:2 msection,a total of 12 sections 8.Heating system: optional
9.Ccoating average degree: ±0.02 mm 10.Total power: 70 kw
