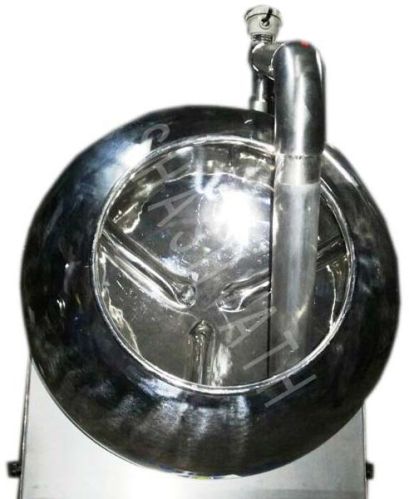

Coating pan

We are the leading manufacturers and suppliers of coating pans based in Thane, Maharashtra. We provide a qualitative range of coating pans that are used for coating tablets in pharmaceutical or chemical industries. Coating Pan This product comes with speed pulley system and motor and worm reduction gears and is customized according to the requirement of the client. It has SS316 semi ellipsoidal pan with HP 3 phase motor and suitable control panel. Coating system is conventional for manual coating and sugar coating.

Construction And Operation :

•  Pan : SS 316 semi ellipsoidal size pan with a circular mouth for charging & discharging of tablets Pan mounted at an inclination of 45 degrees to the horizontal.
• Drive Assembly : Consists of a suitable HP 3 Phase, 440 V, and 1440-RPM TEFC motor with suitable worm reduction gearbox and cone pulley arrangement to give three-speed output.
• Hot Air Blower : The unit is provided with a hot air blower consisting of suitable HP 3 Phase 440 V, 2880-RPM TEFC electric motor & centrifugal blower with damper delivering required CFM. The air is heated by means of   suitable electric heater to give air at 30 to 90 degrees Heater with thermostat control and flexible hose pipe
• Control Panel : Unit provided with suitable control panel with starters and push button to actuate the drive and for blower The circuits consists of MCCBs, relays and contractors in series Ample overload protection is provided by the MCCB and the relay Wires coming out of the connections are numbered for easy recognition.
• Mounting : The motor and gearbox is mounted inside sturdy MS frame and the pan mounted on the Gearing housing fitted in the stand. Blower mounted by the side of the stand or placed in   remote location if required
• Finish : All joints argon Arc welded and all SS Parts polished to suitable finished required of pharmaceutical equipment MS parts painted to smooth finish.
• Operation : The product is to be filled inside the pan. During the rotation motion, coating material is sprayed by spraying system according to the technological process and rational technological process. So process materials (product) are coated due to rotating pan. The coating round pot is rotated by variable speed. At the same time hot air is supplied through inbuilt Hot air blower system which dries rapidly (heating or cooling) and evenly thus forming a solid and smooth surface.

Salient Features :

• Design is cGMP - Current Good Manufacturing Practices compliance.

• All contact parts AISI 316/304 & non contact parts AISI 304.

• Conventional coating system for manual film coating and sugar coating.

• Machine is designed with fabricated structure fitted with SS enclosure which makes simple, cleanable outside covering and mounted on anti vibration pad.

• Closed powerful pan drive with reduction gearbox and motor by variable speed pulley.

• Movable hot air blowing system with electric heater.

• Easy to replace polishing pan and other size coating pan.

Optional Features :

• A.C. frequency Drive for pan.

• Fixed or detachable type baffles.

• Interchange different size Pan & Polishing Pan

• Atomized Spraying system with Spray Gun, Peristaltic Pump and Solution tank and Electro Pneumatic controls.

• Pressurized vessel with spray gun.

• Flame Proof Electrical.

• Pellegrini type Coating machine.

Safety Features : Overload pressure release mechanism.

Application : Coating Pan is used for are used to sugar coat tablets, pills, etc in for a variety of industries such as Pharmaceutical, Confectionery, Food and others. They are also used for rolling and heating beans and edible nuts or seeds.

It used in various industries such as

• Pharmaceutical

• Chemicals

• Food
