Overview Coating Thickness Gauge CM8811FN is a highly intelligent and precise instrument used to quickly and accurately measure thickness of coating or plating on almost all kinds of metal....

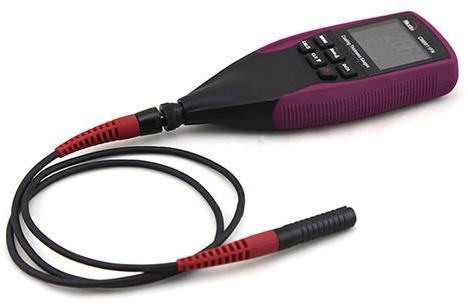

Coating Thickness Gauge CM8811FN is a highly intelligent and precise instrument used to quickly and accurately measure thickness of coating or plating on almost all kinds of metal surface.Â
It not only indicates thickness of coating or plating but also automatically identifies the base material.Â
It is applicable to measure non-magnetic painting, ceramic, enamel, plastic, rubber coating on magnetic base materials such as iron and steel , non- ferrous metal plating such as nickel & chromium, anticorrosive coating, non- conductive painting, plastic coating and anodic oxide film on non-magnetic conductive devices.
Back light: Â Brightness adjustable, clear and easy reading under any light conditionÂ
Alarm: Set higher and lower alarm range for measuringÂ
Calibration: Zero-in, 2 points calibration and multi-point calibration selectableÂ
Battery: Low battery indicationÂ
Language: English (customization for other languages available)
Data Delete: delete a single data or clear all the dataÂ
Â
SpecificationÂ
Range: 0-1250μm /0-50mil
Resolution: 0.1μm/mil
Accuracy: ±(2%+2μm) / ±(2%+0.1mil)
Display:Â TFT 320*240 LCD
Test Limits:
    Surface curvature: convex 1.5 mm / concave 7 mm
    Minimum test surface: Φ8mm
    Minimum thickness of base material: 0.4mm
Operation Condition(not in high magnetic field):Temperature: 0℃～40℃
Humidity: 20%RH-90RH
Product Size: 166 x 68 x 30mm
Weight: 180g (batteries included)
Standard Individual Packing:Fe / NFe probes.Set of plastic test shims and 2 reference calibration plates (Steel and Aluminum).Hard shell storage case.Instruction manual.
