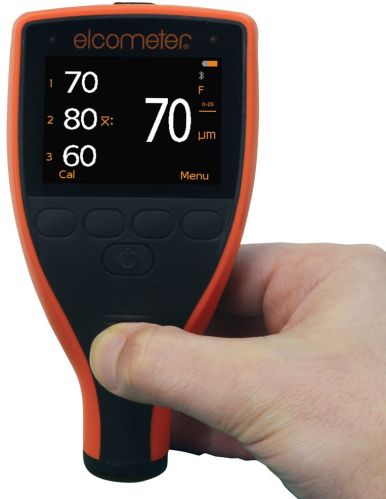

Coating Thickness Gauge For Laboratory Use

Features •2.4 inch colour screen •with Bluetooth and APP function •Car or general mode •Measuring range is 0~2000μm (other ranges can be customized) •High Accuracy 2% •High Speed 2 times/s •External Probe is Optional Specification: Probe Type Internal probe Measuring Principle Fe: Magnetic induction; NFe: Eddy currents Measuring Range 0~2000μm or Optional Accuracy ±(2%+1μm) Resolution 0.1μm(0~100μm); 1μm(>100μm) Unit μm, mm, mils, inch Calibration Zero calibration and multi-point calibration Statistic Number of readings, Max, Min, Mean, sample standard deviation, coefficient of variation, number below limit, number above limit Chart Curve, bar chart or trend chart Storage 10*13*10 measurement data Probe trigger mode Mechanical trigger, trigger force: 0.4~0.8N Minimum curvature radius Convex 5mm Concave 25mm Minimum measuring area Diameter 15mm Minimum thickness of substrate Fe: 0.20mm; NFe: 0.03mm Maximum measuring rate 2 readings/s Display 2.4 inch color screen Bluetooth & APP Support Operation environment Temperature: -10~+50oC; Humidity: 20~90%RH (Non-condensation) Storage environment Temperature: -20~+60oC; Humidity: 20~90%RH (Non-condensation) Power supply 2 pcs 1.5V AA alkaline batteries;
