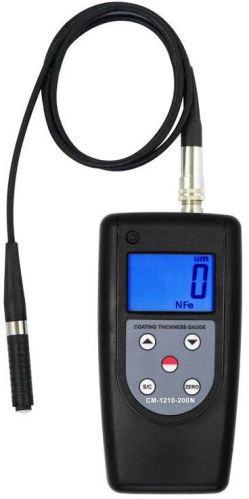

Coating Thickness Gauge CM-1210-200N, Brand Name : Realltech

Coating Thickness Gauge CM-1210-200N

1.Spec:

The N probes measure the thickness of non-conductive coatings on non-magnetic metals.

2.Features:

* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value,and automatic recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

* Separate Type can provide several type probe, measure can be more flexibility.

3.Specifications:

Principle: NF Type Eddy Current

Range: 0 ~ 200 µm / 0 ~ 8 mil

Resolution: 0.1 µm / 1 µm

Accuracy: ±1 ~ 3%n or ±2.5 µm or 0.1 mil

Min. Radius Workpiece: Convex 2 mm / Concave 4 mm

Min. Sample Thickness: 0.1 mm

Metric / Imperial: √

Functions: Battery Indicator & Automatic Power Off

Opeating Conditions: Temperature: 0 ~ 40°C; Humidity: 10 ~ 90% RH

Power Supply: 4 x 1.5V AAA (UM-4) Battery

Dimensions: 140 x 72 x 34mm

Weight: 215g (Not Including Batteries)

Standard Accessories: Main Unit, Probe ( NF Type ), Calibration Base ( NF ), Calibreation Foils ( 1 set, 2 pieces ), Carrying Case ( B04 ), Operation Manual

Optional Accessories: RS-232C Data Cable with Software, Bluetooth Data Adapter with Software
