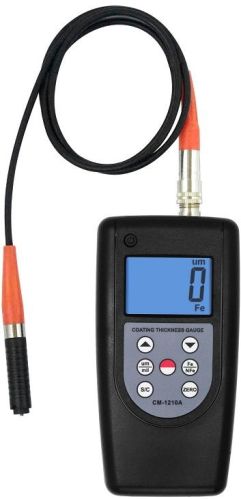

Coating Thickness Gauge CM-1210A, Brand Name : Realltech

Coating Thickness Gauge CM-1210A

1.Spec:

The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.

2.Features:

* Two measuring methods: magnetic induction (F) and eddy current (N).

* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects).

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value,and automatic recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

* Separate Type can provide several type probe, measure can be more flexibility.

3.Specifications:

Principle: F Magnetic Induction & NF Type Eddy Current

Range: 0~2000µm/0~80mil

Resolution: 0.1µm/1µm

Accuracy: ±1~3%n or ±2.5µm

Min. Radius Workpiece: F Type:convex 1.5mm/concave 25mm

                                     NF Type:convex 3mm/concave 50mm

Min. Measuring Area: 6mm

Min. Sample Thickness: 0.3mm

Metric/Imperial: √

Functions: Battery Indicator & Automatic Power Off

Operating Conditions: Temperature: 0~40ºC; Humidity: 10~90%RH

Power Supply: 4x1.5V AAA (UM-4)Battery

Dimension: 140x72x34mm

Weight: 215g(Not Including Batteries)
