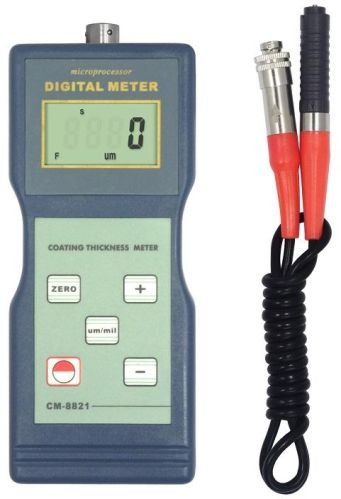

Coating Thickness Gauge CM-8821, Brand Name : Realltech

Coating Thickness Gauge CM-8821

1.Spec:

The F probes measure the thickness of non-magnetic materials on magnetic materials.

2.Features:

* Measuring Principle: magnetic induction (F).

* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value,and automatic recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

3.Specifications:

Principle: F Magnetic Induction

Range: 0~1000µm/0~40mil

Resolution: 0.1µm/1µm

Accuracy: ±1~3%n or ±2.5µm

Min. Radius Workpiece: F Type:convex 1.5mm/concave 25mm

                                       NF Type:convex 3mm/concave 50mm

Min. Measuring Area: 6mm

Min. Sample Thickness: 0.3mm

Metric/Imperial: Convertible

Battery Indicator: Low Battery Indicator

Automatic Power Off: √

Operating Conditions: Temperature: 0~50ºC; Humidity:
