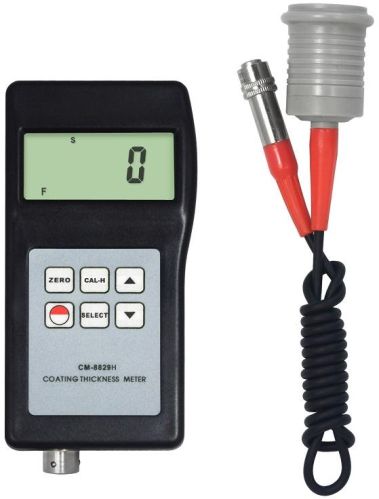

Coating Thickness Gauge CM-8829H
1.Spec:
The F probes measure the thickness of non-magnetic materials on magnetic materials.
2.Features:
* Measuring principle: magnetic induction (F).
* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
3.Specifications:
Principle: F Magnetic Induction
Range: 0~12mm/0~480mil
Resolution: 0.01mm/0.1mm
Accuracy: ±1~3%or±0.2mm
Min. Radius Workpiece: convex 20mm/concave 50mm
Min. Measuring Area: 16mm
Min. Sample Thickness: 0.3mm
Metric/Imperial: Convertible
Battery Indicator: Low Battery Indicator
Automatic Power Off: √
Operating Conditions: Tempersture: 0~50ºC; Humidity:
