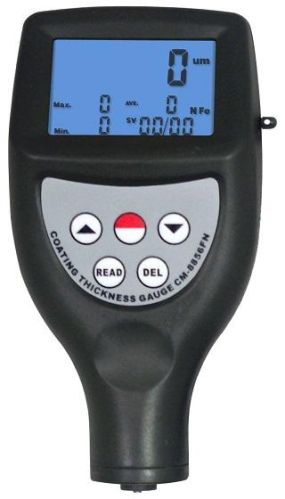

Coating Thickness Gauge CM-8855, Brand Name : Realltech

Coating Thickness Gauge CM-8855

1.Spec:

The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.

2.Features:

* Can store the new data in 99 groups.

* Two measuring methods: magnetic induction (F) and eddy current (N).

* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value,and automatic recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.

3.Specifications:

Principle: F Magnetic Induction & NF Type Eddy Current

Range: 0~1250µm/0~50mil

Resolution: 0.1µm/1µm

Accuracy: ±1~3%n or ±2.5µm

Min. Radius Workpiece: F Type:convex 1.5mm/concave 25mm

                                     NF Type:convex 3mm/concave 50mm

Min. Measuring Area: 6mm

Min. Sample Thickness: 0.3mm

Data Memory: 99 Groups

Metric/Imperial: √

Battery Indicator: √

Automatic Power Off: √

Operating Conditions: Tempersture: 0~40ºC; Humidity: 10~90%RH

Power Supply: 2x1.5V AAA(UM-4)Battery

Dimensions: 126x65x35mm

Weight: 81g(Not Including Batteries)

Standard Accessories: Main Unit, Built-in, Calibration Base (F), Calibration Base (NF), Calibration Foils(1 set, 5 pieces), Carrying Case(B04), Operation Manual

Optional Accessories:RS-232C Data Cable with Software, Bluetooth Data Adapter with Software
