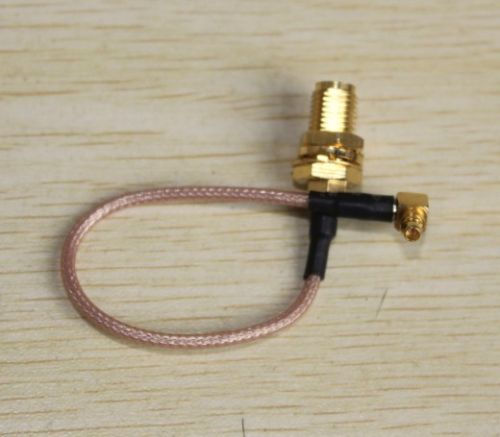

Coaxial Cable Connector

We Offer Coaxial Cable Connector.
MMCX-JW1.5-SMA-KY1.5
Specification of MMCX Connector:
* Impedance 50 ohm 75 ohm
* Frequency Range 0 - 4 GHz 0-2 GHz
* Working Voltage 500 VRMS max. At sea level 500 VRMS max. At sea level
* Dielectric Withstanding
Voltage 1500 VRMS min. At sea level 1500 VRMS min. At sea level
* VSWR Straight: 1.3 max.
Right Angle: 1.5 max. Straight: 1.3 max.
Right Angle: 1.5 max.
* Contact Resistance Center Contact: 3 Milliohms Max.
Outer Contact: 2 Milliohms Max. Center Contact: 3 Milliohms Max.
Outer Contact: 2 Milliohms Max.
* Insulator Resistance 5000 megohms min. 5000 megohms min.
MATERIAL
Parts Name Material Finish
Body, Metal Parts Brass per QQ-B-626 Nickel plated
Center Contacts Male: Brass per QQ-B-626 Gold or Silver per requirement
Female: Beryllium copper per
QQ-C-530 or Phosphor Bronze
Per QQ-B-750
Insulators Teflon, Delrin, PBT polyester None
Crimp Ferrules Annealed copper Nickel or Silver per requirement
Clamp gaskets Silicone rubber, Synthetic rubber None
CABLE: RG316
Note: Other Material / Finish is available on request.
MECHANICAL
* Engagement Force 2.5 in-lbs. Max.
* Disengagement Force 3 lbs. Max.
* Coupling Nut Retention 100 lbs. Min.
* Contact Retention 6 lbs. Min.
* Durability (Mating) 500 cycles min.
