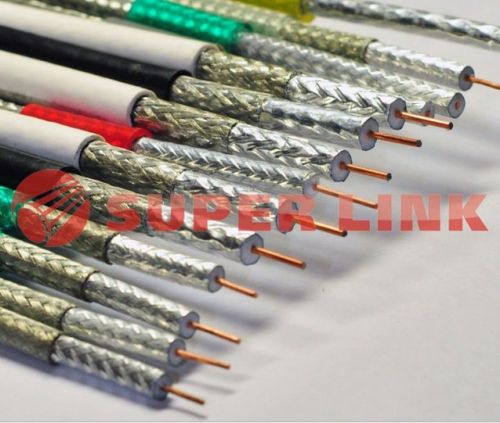

Coaxial Cable Rg59/u

₹ 90 / 100 100 Kilometer

MOQ10 Kilometer
Impedance75+-3ohm
Materials0.81mm CCS, 3.7mm solid PE, 95% bare copper braiding and 6.15mm PVC
Supply TypeManufacturer
Preferred Buyer Location All over the world

We are offering Coaxial Cable Rg59/u. (1)0.81ccs+3.7spe+bonded al foil+60%-95%cu/ccs+6.15mmpvc (2)impedance:75+-3ohm (3)ce,rohs,ul · materials: 0.81mm ccs, 3.7mm solid pe, 95% bare copper....

Product Details

We are offering Coaxial Cable Rg59/u.
(1)0.81ccs+3.7spe+bonded al foil+60%-95%cu/ccs+6.15mmpvc
(2)impedance:75+-3ohm
(3)ce,rohs,ul
· materials: 0.81mm ccs, 3.7mm solid pe, 95% bare copper braiding and 6.15mm pvc
· customized specifications are accepted
· center conductor: tinned, bare copper and copper clad steel
· aluminum foil: non-bonded, bonded, double bonded and double non-bonded
· braiding wire: aluminum, bare and tinned copper
· braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15 and 0.16mm
· braiding net: 32, 48, 64, 72, 80, 96, 120, 128 and 144
· braiding coverage: 30 to 97%
· pvc jacket: flame-retardant, uv or ul
· characteristics:
o impedance: 50 ±2ω
o velocity of propagation: 85%
o capacitance: 110pf/m
o return loss: 20db min
· attenuation: (at 68f (20°c)db/100m
o 10mhz: 3.30db
o 20mhz: 4.70db
o 50mhz: 7.50db
o 100mhz: 11.10db
o 200mhz: 16.80db
o 500mhz: 27.00db
o 800mhz: 35.10db
o 950mhz: 38.70db
o 1,000mhz: 39.20db.

Additional Information

Payment Terms L/C, D/A, D/PT/T
Port of DispatchShanghai or Ningbo
Packaging DetailsLengths: 100, 200 or 305m/roll and 100, 200 or 300 yards/roll Various lengths are available (customized) Inner: wooden, plastic and paper reel Outer: carton box, pull out box and pallet Other packing available according to customer's request
Delivery Time7~15 days
