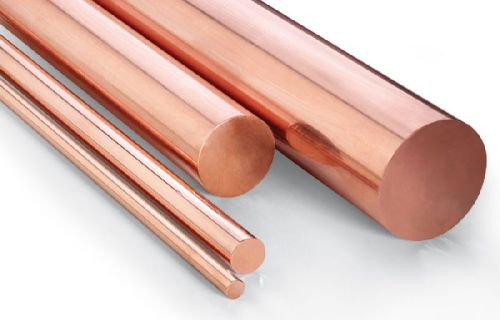

Solid Polished Cobalt Nickel Beryllium Copper Rod

cuco1ni1be/cw103c cobalt nickel beryllium copper

chemical composition:

be: 0.40-0.70%

co: 0.80-1.30%

ni: 0.80-1.30%

cu: balance

note: copper plus additions equal 99.5% minimum.

shapes :

round bars, round wires, round tube,

flat bars, square bars, rectangular bars, hexagon bars, plates, sheets, coils

custom shapes are available upon request.

available sizes:

rod: dia.5~16mm; wire: dia.0.1-5.0mm

tube: od10~60mm, thk 0.1~10mm

plate: thk min 0.5mm

custom diameter & sizes, random mill lengths

typical physical properties:

density (g/cm3): 8.83

density before age hardening (g/cm3): 8.75

elastic modulus (kg/mm2 (103)): 14.10

thermal expansion coefficient (20 °c to 200 °c m/m/°c): 17 x 10-6

thermal conductivity: 209 w/m .ok at 20 c

melting range (°c): 1000-1070

note:

1). The units are based upon metric.

2). The typical physical properties apply to age hardened products.

related standard

rods/bars/tubes  astm b441 sae j461 463 rwma class 3

sheets  astm b534

wires  astm b441

plates  astm b534 sae j461 463 rwma class 3

european standards  cuco1ni1be  cw103c to en

other material are also available

c17200/cube2/cw101c/din 2.1247

c17300/cube2pb/cw102c/din 2.1248

c17500/cuco2be/cw104c/din 2.1285

c17510/cuni2be/cw110c/din 2.0850

cuco1ni1be/cw103c
