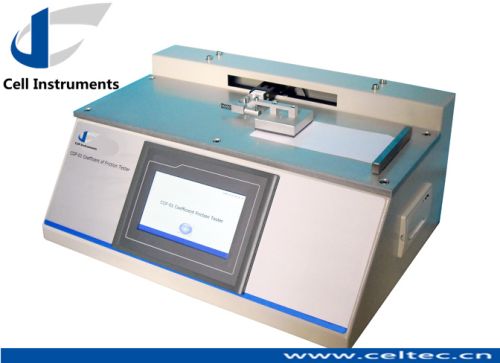

Coefficient Of Friction Tester, Brand Name : Cell Instruments

We are offering coefficient of friction tester cof-01 is for the determination of static and kinetic coefficients of friction of plastic films, sheets, rubber, paper and paper board, pp woven bags, fabrics, metal-plastic composite belts for communication cables, convey belts, wood, coatings, brake pads, windshield wipers, shoe materials and tires. By measuring the smoothness of a product, the fastest running speed of packaging line can be realized.
Coefficient of friction tester principle
the two samples are placed together. A long strip sample is fixed on the flat surface and another squared sample is applied force by a sled. The friction force is measured when they slip against each other.
Coefficient of friction tester features
1. plc control and touch screen operation
2. real time display of test data, results and curves
3. both the static and kinetic coefficient of friction can be measured
4. in accordance with multiple international standards
5. test results calculation, analysis and curve superposition
6. rs232 output and professional software
7. microprint of easy printing of test result
coefficient of friction tester technical specification
load cell 5n
accuracy 0.5 f.s.
Stroke max 150mm
sled 200 g (customization for other weight)
test speed 100mmmin (iso), 150mmmin(astm) (any speed can be set)
power ac 220v 50hz ( can be changed to local requirement)
dimensions 540mm(l)×38mm(w)×24mm(h)
coefficient of friction tester standards
astm d1894, iso 8295, tappi t816, gb 10006
