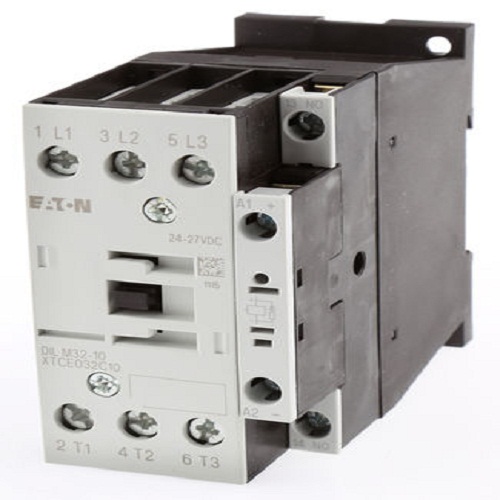

We are supplier of 3 Pole, 32 A, 15 kW, 24 VDC Coil Contactor - DILM32-10 to our customers in india.
* Features of Coil Contactor:-
1.Wide voltage tolerance +10% to -20% nominal
2.Front mounted coil terminals
3.Four compact frame sizes cover applications to 150A
4. Dual box terminals make wiring safer and easier for cables with uneven cross-sections
Applications :- Coil Contactor is used in Motors.
Technical Details:-
Coil Voltage 24 V dc
Contact Current Rating 32 A
Number of Poles 3
Series DILM
Pole and Throw Configuration 3P
Normal State Configuration 3NO
Power Rating 15 kW
Number Of Auxiliary Contacts 1
Contact Voltage Rating 400 V ac
Length 85mm
Width 56mm
Depth 138mm
Dimensions 85 x 56 x 138 mm
We are suppling a 24vdc coil contactor,24 volt dc coil contactor,24vdc contactor coil current,3 phase contactor 24vdc coil,magnetic contactor coil 24vdc,magnetic contactor coil 24vdc,contactor with 24vdc coil etc.
