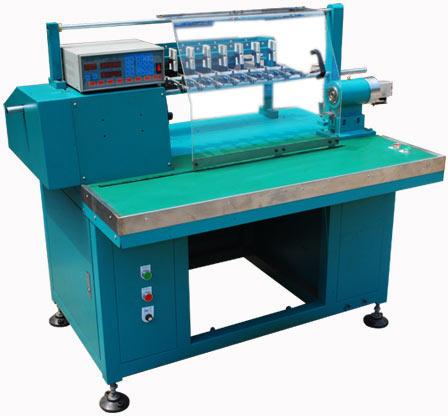

Coil Winding Machine Series DLM-0866
It is horizontal and automatic winding machines with serial parallel coil formers,which is suitable for winding various AC,DC motor stator coil and inductance coil.It is controlled by a single board computer,and a stepping motor can automatically complete the operations such as zero resetting,traversing and skipping so as to realize exact lining.Through the control panel,users can set the wire diameter,number of turns,through of traverse and skipping distance,etc.according to their demands.
Technical Parameter
Suitable Wire Diameter 0.1-1.2mm
Winding Width 0-30mm
Winding Diameter 25-100mm
Effective Length of Series-mode Axis 500-600mm
Return Diameter of Former 210-280mm
Rotation speed 3200R.P.M
Power Source 220V 50Hz
Pressure of air supply 0.5-0.8MPa
Power 750W
DimensionLWH 14509121200mm
Weight about 800kg.
