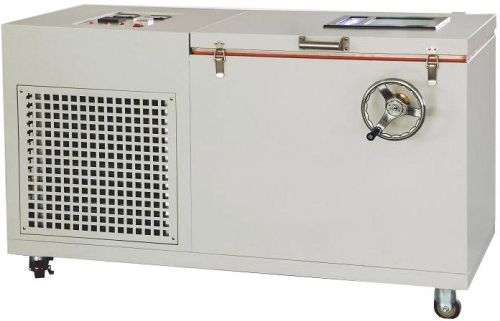

Cold Chamber HD-8029B

HONGDU TESTING EQUIPMENT CO.,LTD.
HD-8029B Cold Chamber
Description:
This machine is manufactured and designed to meet the requirements of relevant standards,such as GB/T2951, UL1581, UL2556, IEC540 etc.It can provides a low-temperature environment for further test,such as ‘Cold Bend’, ’Cold Impact’, ’ Flexibility At Low Temperature’ and the like.The sample will be placed into the Cold Chamber for a specified period at a specified temperature,and after undergoing those the sample must undamaged by the test.
Features:
* The intelligent PID temperature control system allow precise operation.
* Provide horizontal airflow for even exposure to all samples.
* The refrigeration is come from Tecumseh(France).
* The big window in the door makes your view convenient.
* Four-tiered safety system for super-cooling conditions.
* Stainless steel interior.
* OPTION:Low temperature bending device and Low temperature impact shelves.
Technical parameter:
Power source AC 3φ 380V,50Hz,Max 15A
Temperature range Ambient to -700C
Temperature precision ±0.50C
Temperature uniformity ±10C
Refrigerate time less than 1h (from ambient to -700C)
Interior capacity 520mm W,450mm D,500mm H
Exterior dimensions 1350mm W,640mm D,750mm H
Standards:
GB/T2951, UL1581, UL2556, IEC540
Test Objects:
Cable, Wire, Socket
