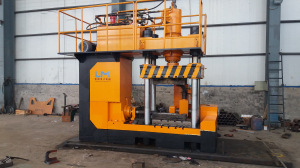

Cold Forming Elbow Machine

Φ168 Cold Forming Elbow Machine
Cold Forming Elbow Machine
Stainless Steel Elbow Machine
Product introduction
Stainless Steel Cold Forming Machine is fit for producting elbow with radius of 1D,1.5D and diameter from 12＂to 24＂.
Features
1. Easy to operate，adopt PLC control
2.Energy saving
3. Environment friendly
Technical parameters
Model
 Size Range
 (mm)
Clamping Force
 (KN)
Pushing Force
     (KN))
Rated working
pressure
 (MPa)
Total power
of motor
 (KW)
Total Weight
(kg)
EDY-100 Φ25-Φ76 1000 630 25 11 6300
EDY-200 Φ34-Φ114 2000 1250 25 18.5 9000
EDY-400A Φ133-Φ273 4000 2500 25 29.5 38000
EDY-400B Φ108-Φ219 4000 2500 25 29.5 35000
EDY-630 Φ133-Φ325 6300 3150 25 36 48000
EDY-800 Φ219-Φ377 8000 4500 25 42 76000
EDY-1000 Φ273-Φ426 10000 5000 25 65 98000
EDY-1600 Φ325-Φ530 16000 8000 25 88.5 130000
EDY-2000 Φ406-Φ630 20000 10000 25 110 200000
