Cold & Hot Oil Press Machine

COLD OIL PRESS KYP20&KYP45&KYP55
Technical Data For KYP 20:
Capacity : 200 kg/day
Electrical voltage : 220/380 V 50 Hz
Motor Power : 1.1 Kw Heat
Power : 230 Watt
Temperature control : 0-100 'C
Nozzle diameters : 4 mm , 6 mm,8 mm
Package dimension: 100*45*45 (cm), 80 kg
Technical Data For KYP 45:
Capacity :450 Kg/day
Electrical Voltage : 220/380 V 50 Hz Technical Data For KYP 55
Motor Power: 2,2 Kw
Heat Power :230 Watt
Temprature Control: 0-100 'C
Nozzle Dia. : 4 mm,6 mm,8 mm Power:230 Watt
Package dimension: 100*48*56 (cm), 90 kg
COLD OIL PRESS KYP20D&KYP45D
Technical Data For KYP 20D
Vario Speed Control
Capacity:75-200 kg seed/day
Electrical voltage:110/220/380V 50 Hz
Motor Power:1.1Kw
Heat Power:230 Watt
Temperature control:0-100 'C
Nozzle diameters:4mm ,6mm, 8mm
Package dimension: 107*45*51 (cm), 88 kg
Technical Data For KYP 45D
Vario Speed Control
Capacity:150-450 kg seed/day
Electrical voltage:110/220/380V 50 Hz
Motor Power:2.2Kw
Heat Power:230 Watt
Temperature control:0-100 'C
Nozzle diameters:4mm ,6mm, 8mm
Package dimension: 114*48*56 (cm), 110 kg

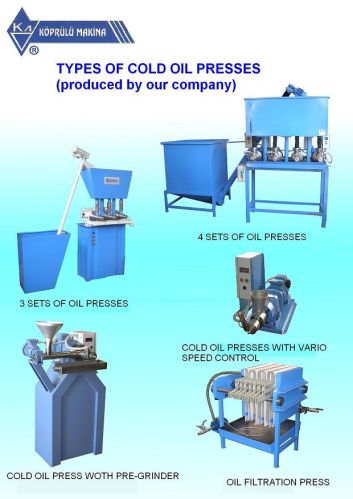

COLD OIL PRESS KYPS60&KYPS135
Technical Data For KYPS 60
3 Set of KYP 20 Cold Oil Press
Capacity : 600 Kg/ day
Electrical voltage:110/220/380V 50 Hz
Motor Power:3x1,1Kw
Heat Power:3x230 Watt
Temperature control:0-100 'C
Nozzle diameters:4mm ,6mm, 8mm
Includes; Table, Conveyor Worm and Silo
Package dimension: 180*120*100 (cm), 400kg
100*100*100 (cm), 100kg
20*20*300 (cm), 60kg
Technical Data For KYPS 135
3 Set of KYP 45 Cold Oil Press
Capacity : 1350 Kg/ day
Electrical voltage:110/220/380V 50 Hz
Motor Power:3x2,2Kw
Heat Power:3x230 Watt
Temperature control:0-100 'C
Nozzle diameters:4mm ,6mm, 8mm
Includes; Table, Conveyor Worm and Silo
Package dimension: 180*150*100 (cm), 550kg
120*120*100 (cm), 150kg
300*20*20 (cm), 60kg
COLD OIL PRESS KYPS80&KYPS80D&KYPS180
Technical Data For KYPS 80
4 Set of KYP 20 Cold Oil Press
Capacity : 800 Kg/ day
Electrical voltage:110/220/380V 50 Hz
Motor Power:4x1,1Kw
Heat Power:4x230 Watt
Temperature control:0-100 'C
Nozzle diameters:4mm ,6mm, 8mm
Includes; Table, Conveyor Worm and Silo
*If you want to increase capacity, you can set additional press head to the machine as per your requirements.
KFP50 250lt/hr
KFP100 500lt/hr
KFP200 1000lt./hr
