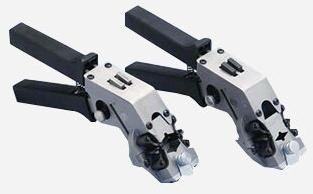

Cold Pressure Welding Machine, Packaging Type : black

1. SZ-1A Parameters and pictrues:
2. Wire Cold pressure welding machine Introduction:
1. Weld copper wire or aluminum wire; or weld copper wire with aluminum wire
2. No need any power, heat, only match corresponding dies.
3. Our machine can weld copper wire from 0.06mm-10.0mm; weld aluminum wire: from 0.06mm-15.0mm.

4. You can choose suitable machine according the wire diameter you need to weld and our machine's welding range.
5. For example, if you want to weld 0.90mm, 1.0mm, 1.20mm, 1.40mm copper wire, you can choose model SZ-3T, SZ-3TR. And also should match four single cavity dies or two double cavity dies.


6. Our machine is compatibility with other supplier�s welders. You can use others� welding machine with our dies; or use our dies on other supplier�s machine.
7. The tolerance of dies to wire: -1%mm+ 3%mm wire to dies tolerance.
For example: 2.0mm dies can weld the wire diameter from: 1.98mm to 2.06mm wires.

8. Can different metals be welded using cold pressure? Cold welding can be used to join dissimilar materials, such as aluminum to copper.

9. The wire can be welded:
Naked copper wire & aluminum wire, brass wire; enameled copper wire, copper clad aluminum conductor; or weld copper wire & brass wire together with aluminum wire. Plastic wires and other wires should remove surface insulation part, then welding.

Steel wire or stranded wires can�t be welded.
The following wires can be welded are: Copper wire- enamelled copper wire- brass wire- aluminum wire
