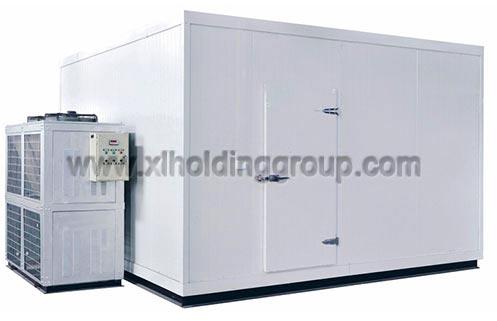

Cold Room, Uses PU Sandwich Panel

Product Brief :
Cold room for fish, vegetable blast freezer cold room vaccine storage refrigerator can be built at any size according to your requirement, temperature range from -40 to 15°C Also can be put the rack or pallets to improve the utilization space of room and easy to handing, fast assemble, convenient to adjust the layer height
Forklift can go into the passage for improving the utility ratio of room
Details
What is needed to design a cold room:
Outline dimension in metres (length×width×height)
Main building to hold the room: steel structure, civil work structure or others
Local voltage, local frequency: 380V/3P/50Hz
Lowest and highest temperature in construction site
Product type: meat, fruit, food or others
Temperature of product before stored into the cold room
Indoor temperature required
Cooling time required
Numbers of time to open and close to door per day
Whether driving forklift in the room
Feature of cold room:
Supply power: 380V-50Hz-3P or others
Temperature: -40 to 20°C
Copeland condensing unit or others famous brand
DANFOSS pressure controller or others
Size: customized
PU, EPS panels, swing or sliding door
Other electronic fitting
Cold room specification:
Refrigeration system: compressor, condenser, evaporator and refrigerant
Electric system: siemens and schneider electric components or others
Selection of world famous compressors, such as Bitzer, Copeland, Maneurop, Turin
Insulation panel: use 100% polyurethane insulation panel, density about 38~46kg/m3, with gasket, with flame retardant
Panel thickness: 100-200mm, standard width of panel is 980mm
Materials: PU, EPS, XPS panel, metal sheet
Metal sheet: painted color steel sheet, stainless steel sheet, or other.
Thickness of panel: 75,100,120,150 and 200mm
Different temperature requires different thickness of panel
Cold room door:
Swing door and sliding door for choice
Swing door: manual opened, automatic
Coated with stainless steel sheet, color steel sheet on the ace plate
Polyu
