Cold Welding Machine

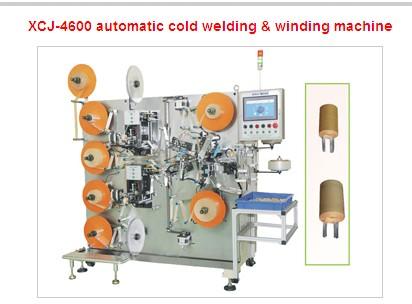

We are offering automatic cold welding machine, winding machine (xcj 4600)
1. Can take-up and high-voltage electrolytic alumium foil paper.
2. The machine design uses a single-voltage winging needle with a stable winding length and pitch, high electrolytic and high electrolytic and high production equipment.
3. The first two layers of paper or of four rolls paper and features selection in the leed with a pad paper on the function(optional).
4. Produce a pair or two pairs of ear pieces of the electrolytic container.
4. Using high precision touch screen for data srtup and operation, easy maintenance and easy operation.
specifications:
dimensions: 1920lx1200wx1650h
weight: 190kgs
power: ac220v 50hz
pressure: 5.5kg/f/cm2
coating color: optional
applicable standard:
product diameter: dia. 22~dia. 45
product height: 40~80mm
foil length: 700~3500mm
foil width: ~70mm
electrolytic paper width: 35~75mm
roll pin diameter: dia. 4.0 dia. 4.5 dia. 5.0 dia. 5.5
mechanical speed:
foil length: speed (pcs/min)
700~1000 11~14
1000~1500 9~11
1500~2000 6~9
2000~2800 5~7
2800~3500mm 3~5
configuring specification features:
1, negative outsourcing, the negative pole at the bottom
role: to enhance the internal heat capacity of the capacitor
2, lead site pad of paper
role: to prevent the capacitor leads in the work area overheating, resulting in the breakdown of electrolytic paper and caused short-circuit
3, pre-punching device
effect: to reduce producing aluminum dust when formation of nails rivet, reduce product short-circuit probability.
4, partial core wire detection and correction
role: reducing the inductance and impedance for capacitor under high frequency.
5, guided needle righting device
role: to prevent the guide pin skew nailed or deflection nailed when it's nail riveted.
6, synchronous winding device for winding needles with different size.
role: to effectively ensure the element without phenomenon of non-core pulling.
