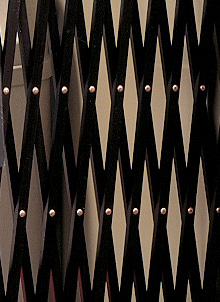

Collapsible Gate

For passenger, freight or material lifts, we fabricate each gate individually to your specifications. Construction and materials are of the highest quality, surpassing all ANSI/ASME codes. You choose from a wide variety of attractive finishes and colors to ensure the perfect aesthetic fit. And if you're in a pinch or have an elevator that's shut down, we can ship out our standard finish gates within 48 hours - the quickest delivery time in the industry!

• Technical Features:

• Every third vertical member guided at top and all guided at bottom
• Vertical bars made from 3/8" x 3/4" cold-rolled channel
• Webs made of 5/8" x 1/8" hot-rolled flat steel
• Channel track is constructed of heavy-duty galvanized box type 1-7/8" x 2-3/8" with two-wheel construction carriers and weight load of 150 lbs per carrier
• Flat bar ("knuckle track") is constructed of 5/16" x 1-1/2" cold-rolled flat bar with heavy-duty ball bearing rollers
• Optional bottom sill made with two 1/2" x 1/2" square steel bars welded to 1/8" x 1-1/2" flat bar

• Available Finishes :

• Steel
• Painted Steel
• Stainless Steel
• Bright Zinc Plated
• Brass
