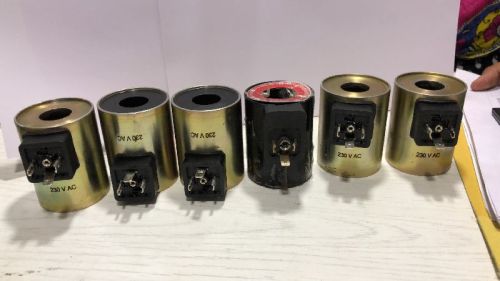

we deliver an extensive variety of fabricated coils that is manufactured using high quality raw material. Our expert team tests these on a several parameters to make the coils suitable for inter-turn short circuit. ac and dc contactors both work on the principle of electromagnetic. These are extensively appreciated for their high customers, we also provide customization facility. Our offered coil is varied in length, width, thickness and multiple surface finishes.
features:
* low cost
* effective performance
* make the coils suitable for inter-turn short circuit
VOLTAS TYPE CONTACTOR COILS (BOBBIN TYPE)
| COILS NAME | A | B | C | D | E | F | REST AT 220 VOLT |
| 100 AMP | 79 | 79 | -- | 25 | -- | 65 | 1150 |
| 200 AMP | 94 | 94 | -- | 38 | -- | 75 | 750 |
FORMERLESS CONTRACTOR COILS (IN PAIRS)
| COILS NAME | A | B | C | D | E | F | REST AT 220 VOLT |
| 300 AMP | 64 | -- | -- | 31 | -- | 95 | 550 |
| 600 AMP | 78 | -- | -- | 36 | -- | 110 | 410 |
| 800 AMP | 110 | -- | -- | 36 | -- | 145 | 154 |
AC CONTACTOR COIL
| COILS NAMES | A | B | C | D | E | F | REST AT 230 VOLT |
| AC CONTACTOR | 43 | 42 | 17 | 17 | -- | 25.5 | 1508 |
