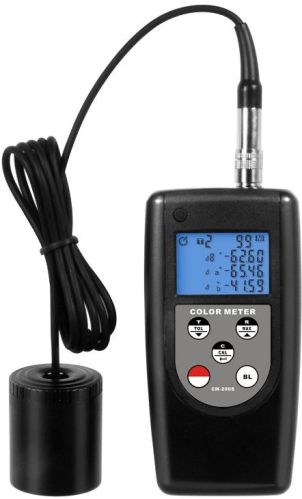

Color Meter CM-200S

Color Meter CM-200S

1.Spec:

The meter is an extremely compact, extremely easy-to-use tristimulus colormeter specially designed for measuring the color difference between two colors.

2.Features:

The meter is designed for measuring the color of no lighting and non-fluorescent sample such as textile, paper, leathers, painting materials, etc. It is the useful tool for the quality control and wide industrial application.

* Color difference displayed ∆(L*, a*, b*), ∆(E*ab, C*ab, H*ab), ∆(Y, x, y), ∆(X, Y, Z), ∆(Rs, Gs, Bs) or ∆(WI, YI, Tw).

* Color space displayed (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).

* Statistical function (Maximum, Minimum, Average and Standard Deviation).

* Color difference tolerance set to perform PASS / WARN / FAIL.

* Store 9 color-difference target colors.

* User calibration function ensures higher accuracy.

* Auto memory (99 sets) & Read function.

* Digital backlight display.

* Auto power off function.

* Applies USB, Bluetooth data output.

* Use USB data output to connect with PC.

3.Specifications:

Display: Triple 4 digit LCD Display

Auto power off: Approx. 3 minutes

Data memory capacity: 99 set. (Direct reading from LCD display)

Low battery indication: √

Illuminating/Viewing geometry: 45°/0°: Illumination at 45°, measurement at 0°

Measuring area: Color difference: ∆(L*,a*,b*), ∆(E*ab,C*ab,H*ab), ∆(Y,x,y), ∆(X,Y,Z), ∆(Rs,Gs,Bs) or ∆(WI,YI,Tw)

                           Color space: (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw)

Target color memory: 9 channel; set by measurement or keypad

Measuring range: L*: 5 to 100

Measurement conditions: Observe: CIE 2° Standard Observer

Illuminant: White LED lamp

Repeatability: Standard deviation within ∆E*ab 0.5 (Measurement conditions: Average of measurements of standard white plate)

Minimum interval  between measurements: Approx. 2 seconds

Operating temperature and humidity: 0~40°C(32~104°F), < 85%RH.

Storage temperature and humidity: -10~40°C(14~104°F), < 70%RH.

Power source: 4x1.5 AAA (UM-4) Battery

Dimensions: 140x73x35mm (5.5x2.9x1.4inches)

Weight(Not Including Batteries): Approx. 220g with battery

Standard Accessories: Main Unit, Measuring head, White calibration card, Carrying Case (B04), Manual

Optional Accessories: USB Data Cable with Software
