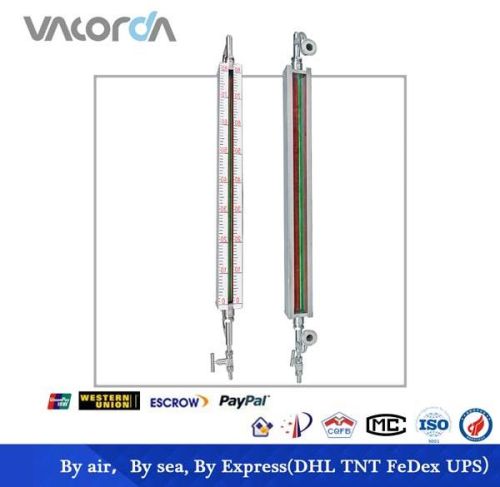

Color Quartz Tube Liquid Level Meter

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Color Quartz Tube Liquid Level Meter indicates the level of liquids, gases, oils, alkali and acids in different colors. We are marked as an eminent Manufacturer and Supplier of Color Quartz Tube Liquid Level Meter from Sichuan, China. The Color Quartz Tube Liquid Level Meter offered by us can read the level at any angle.

View More Details

Send Enquiry

Specifications

Recommended center-center distance	300, 500, 800, 1100, 1400,1700,2000mm(custom made)
Indicate mode	single color, bicolor(red as vapor phases, green as liquid)
Material	carbon steel, 304,316L, 1Cr18Ni9Ti, 0Cr18Ni9, 304 with PTFE lining
Nominal pressure	PN6-PN100(×0.1MPa)
	304 +PTFE≤PN40
	PP≤100
Working temperature	carbon steel ≤350^o
	Stainless steel ≤450^o
	304+PTFE ≤200^o
	PP≤100^o
Drain valve	drain needle valve (or customize)
Vent valve	vent needle valve (or customize)
Process flange	DN20/RF HG/T 20592-09
The heat steam interface	ZG1 male screw thread
The heat steam pressure	≤1.0Mpa
Eclectic heating	self-limiting temperature heating (unnecessary for anticorrosive type)
Steel ball self-closing pressure	≥0.3Mpa
Power supply	24V DC, 36V AC
Environment temperature	-50~+80^o C
