Contact SupplierWe are offering ccd camera.

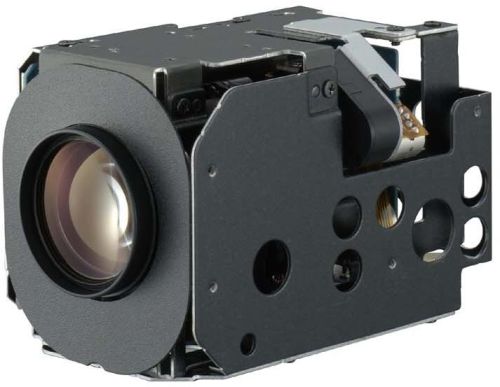

the sony fcb-ex985ep block camera combines superb picture quality with high zoom capabilities, up to 336x with optical zoom. Ideally suited for ip-ready monitoring applications, the sony fcb-ex985ep incorporates â¼-type superhad ii ccd with interlace scan with a digital output (itu-r bt656). In addition, the sony fcb-ex985ep features stablezoom image stabilization and sodium vapor lamp mode to reduce the yellowing of images. Additional color enhancement features are ideally suited for low vision applications.
The sony fcb-ex985ep camera specifications:
camera specifications:
* image device: 14-type superhad ii ccd (interlace scan)
* effective pixels: 380,000
* digital zoom: 12x (336x with optical zoom)
* horizontal viewing angle: 55.8â° (wide end) ~ 2.1â° (tele end)
* minimum object distance: 10 mm* (wide) ~ 1500 mm (tele) *default: 290 mm
* sync system: internalexternal (v-lock)
* electronic shutter: 11 to 110,000 s, 22 steps
* white balance: auto, atw, indoor, outdoor auto, sodium vapor lamp (fixauto), one-push, manual
* gain: automanual max. Gain limit (-3 to 28 db, 2 db steps)
* privacy zone masking: spherical
* character generator: title display (20 charactersline, 11 lines)
* focus system: auto (sensitivity: normal, low), one-push af, manual, infinity, interval af, zoom trigger af, focus compensation in icr on
* picture effects: e-flip, nega art, black & white, mirror image, color
sony fcb-ex985ep video output specifications:
* lens value: 28x optical zoom (f=3.5mm (wide) ~ 98.0 mm (tele)
* sn ratio: more than 50 db
* minimum illumination: 0.3 lx (typical) (f1.35, 50 ire)
* video output: analog: vbs: 1.0 vp-p (sync negative, yc; digital: ycbcr 4:2:2 (itu-bt656 style)
* signal system: ntsc (fcbex985efcb-ex985e), pal (fcbex985epfcb-ex985ep)
