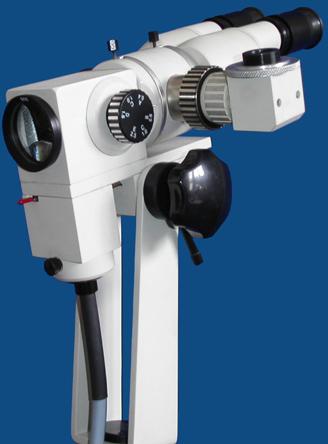

Contact SupplierWe offer colposcope for gynecology. Specifications
microscope
binoculars straight f'=160 mm
objective f'=300 mm
eyepiece 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
diopter adjustment -5d to + 5d
magnification changer 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
total magnifications 2.8x, 4x, 7x, 11.5x, 17x
visual field 80 mm to 12.5 mm
interpupillary distance 55mm to 75 mm
focusing macro- with stand movement; micro-range of 40 mm
with manual adjustment of rack and pinion
working distance 295 mm
illumination
type coaxial illumination by optical light-guide system
cold light source halogen lamp, 15v150w
illumination control 3 steps
field of illumination 80 mm
power supply ac 110v60hz 220v50hz c 200w
light intensity 80, 000 lux
filter green
column and base
type floor type
rotation angle 360 degree
elevation stroke 170 mm
height from objective to floor 1000 mm to 1170 mm
base size 600mm
weight 16 kgs
accessories
binoculars 45 degree inclined binoculars f'=160 mm
objective f'=250 mm, 350mm, 400 mm
beamsplitter dismountable
adaptor for ccd camera f'=65 mm
integrated bs and ad
ccd camera.
