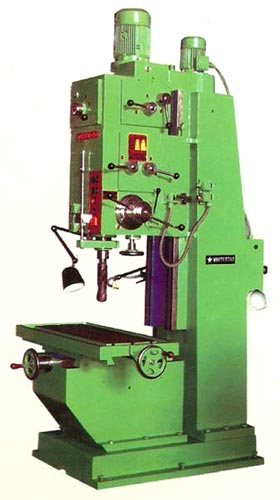

We offer precision-engineered Column Drilling Machine to our widespread clients in India. The Column Drilling Machine, fabricated by us, comes with highly advanced features ensuring efficient operation. We make optimum utilization of technologies while making Column Drilling Machines. Besides, our Column Drilling Machine is available at very cost-effective price.
Highlights Of Column Drilling MachineTable
| Overall Size of The Base | 1170 x 770 mm |
| No. of T - Slots | 3 Nos. / 19.2 mm |
| Max. Distance Between Spindle And Base | 1100 mm 1200 mm |
| Space Occupied L x B x H (Approx.) | 160 x 850 x 300 mm |
| Net Weight (Approx.) | 2350 Kgs. 2700 Kgs. |
| Gross Weight | 2700 Kgs. 3100Kgs. |
| erall Size of The Base | 1170 x 770 mm |
|---|---|
| No. of T - Slots | 3 Nos. / 19.2 mm |
| Max. Distance Between Spindle And Base | 1100 mm 1200 mm |
| Space Occupied L x B x H (Approx.) | 160 x 850 x 300 mm |
| Net Weight (Approx.) | 2350 Kgs. 2700 Kgs. |
| Gross Weight | 2700 Kgs. 3100Kgs. |
| Drill Head | WCD - 40 | WCD - 50 |
|---|---|---|
| Drilling Capacity In Steel | 40 mm | 50 mm |
| Drilling Capacity In C.I. Casting | 50 mm | 60 mm |
| Taper In Spindle | MT - 4 | MT - 5 |
| Spindle Traverse | 200 mm | 250 mm |
| Vertica Adjustment Of Spindle Head | 450 mm | 500 mm |
| Distance Between Spindle And Column | 400 mm | 400 mm |
| Number of Spindle Speeds And Range | 12(56 -1000RPM) | 12(45 - 1000 RPM) |
| Number of Spindle Speeds And Range | 3(0.1 - 0.3 mm /rev.) | 6(.12 - 25 mm / rev.) |
| Power of Main Motor | 3H.P. | 5H.P. |
| Power of Elevating Motor | 2H.P. | 2H.P. |
| Motor Suitable For Coolant | 0.125 H.P. | 0.125 H.P. |
