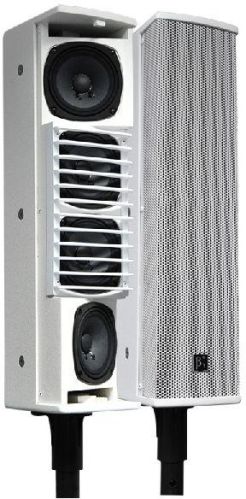

Column Loudspeaker

Installed line array column loudspeakers used in applications including sound reinforcement for Houses of Worship, Events, Theme Parks, Transit Terminals and Shopping Malls etc. The T Series delivers extraordinary performance where high speech intelligibility and natural sounding music is required at unmatched value.

• Vertical line array of 4 x 4 full range transducers
• High fidelity sound
• Passive configuration
• 180º x 30º controlled coverage pattern
• Designed for high speech intelligibility and natural sounding music
• Suitable for use as a main system with or without sub speaker augmentation
• Quick install U bracket included with multiple mounting points provided
• Permanent installation (wall, ceiling, under balcony) or Portable system (stand adaptor included)
• Powder coated grill
• Durable Polyurethane textured base paint
• Available in either black or white
• 1 x NL4 connector included in packaging
• Optional 100/70V 100W transformer
• Optional mounting hardware
• Optional processing recommended - can be used without
• Patents pending for central diffuser plate

System Specifications

Construction 15mm Birch Plywood
Transducer 4 x 4''
Rated Power 120W (RMS), 240W (Program), 480W (peak)
Frequency Response(-3dB) 90Hz-16kHz
Sensitivity(1W@1m) 92dB
Maximum. SPL(1m) 113dB/119dB (PEAK)
Rated Impedance 8?
Dispersion Angle?HxV? 180°x 30 °
Connector Screw Terminal and 1 x NL4
Dimensions (W—H—D) 135mm (5.3) x 169mm (6.7) x 560mm (22.1)
Packaging Dimensions (1 piece/pack) 240mm (9.5) x 205mm (8.1) x 660mm (26)
Net Weight (1 piece/pack) 6.5kg (14.3lb)
Gross Weight (1 piece/pack) 7kg (15.4lb)
